Compact Substations
Introduction to Compact Substations
A Safe, Compact, and Advanced Solution for Power Distribution

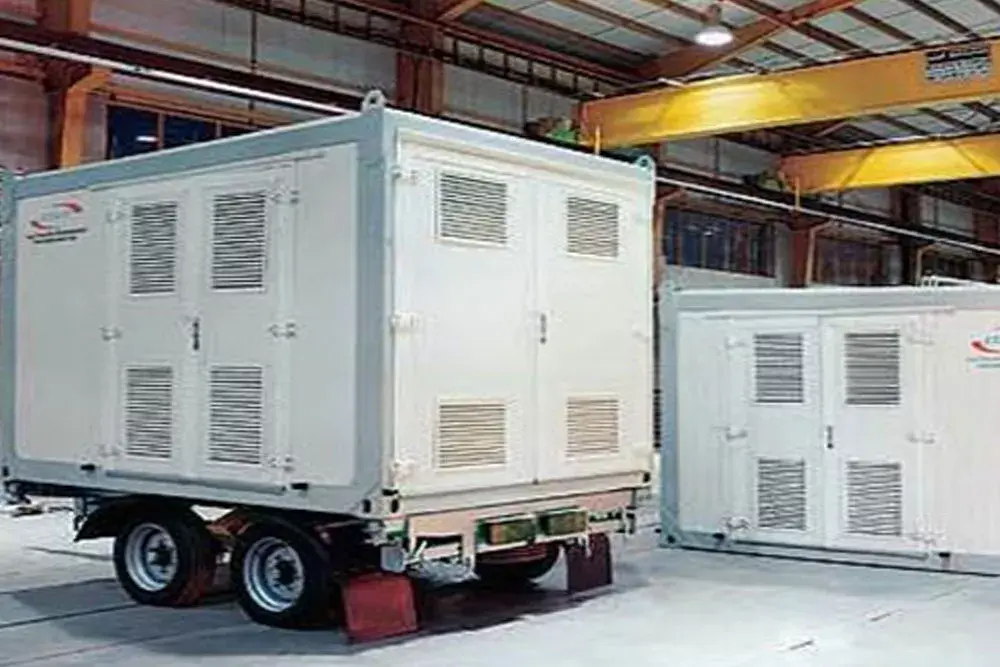

Compact substations are a new generation of power distribution stations that serve as a modern alternative to traditional, bulky substations. Designed to be space-efficient, quick to install, and highly safe, these substations are widely used in urban areas, industrial sites, and development projects. Tose'e Posthaye Iran Transfo utilizes modern technology, high-quality equipment, and a specialized engineering team to design and manufacture various types of compact substations tailored to project needs and international standards.
Features and Technical Specifications of Compact Substations
- Rated Voltage: 11kV to 36kV
- Transformer Capacity: 100kVA to 2000kVA
- Transformer Type: Oil-immersed or Dry-type (Cast Resin)
- Switchgear Type: Medium Voltage (RMU or AIS) and Low Voltage (LV Panel)
- Protection Degree: IP44 to IP54
- Enclosure Material: Hot-dip galvanized steel with electrostatic powder coating
- Safety Features: Ventilation system, internal lighting, full earthing, safety locks, internal pressure warning system
- Installation Options: On concrete foundation or prefabricated concrete pad
- Modular Design: Easy upgrade or replacement of internal components
Main Components of a Compact Substation
- Medium Voltage Switchgear (MV): Controls and distributes power at medium voltage levels with load and fault switching capabilities.
- Distribution Transformer: Converts medium voltage to usable voltage (400/230V), available in oil-immersed or dry-type models.
- Low Voltage Panel (LV): Includes switches, busbars, fuses, and protective devices for power distribution to end-users.
- Enclosure and Housing: A fully insulated and corrosion-resistant metal structure that houses all equipment and protects against dust, rain, and other environmental factors.
Various Applications of Compact Substations
- Urban and rural power distribution networks
- Parks and public spaces
- Residential and commercial complexes
- Small and large industries
- Manufacturing plants and production lines
- Small-scale power plants
- Oil, gas, and petrochemical projects
- Solar farms and renewable energy plants
- Construction camps and temporary projects
Competitive Advantages of Iran Transfo Compact Substations
- Fast and Easy Installation: No need for extensive construction or complex facilities
- Space Saving: Ideal for limited or urban spaces
- High Safety: Equipped with electrical protection, safety locks, and proper ventilation
- Customizable Design: Tailored to project requirements, usage type, and climatic conditions
- Cost-Effective: Lower installation, maintenance, and operation costs
- Durable in Harsh Environments: Suitable for tropical, desert, or humid regions
- After-sales Service and Technical Support
FAQ
- What is the maximum capacity for compact substations?
- Our compact substations are available from 100kVA up to 2000kVA. Custom capacities can also be manufactured upon client request.
- Is it possible to use a dry-type transformer instead of an oil-immersed one?
- Yes, depending on the installation location and project requirements, both dry-type and oil-immersed transformers can be used.
- How is ventilation and cooling managed in compact substations?
- The substations are equipped with natural or forced ventilation systems to regulate the internal temperature of the enclosure.
- Are compact substations suitable for renewable energy applications?
- Yes, these substations are well-suited for small-scale solar farms and wind power plants.
- آیا امکان سفارشسازی بر اساس نیاز وجود دارد؟
- کاملاً بله؛ نوع تابلو، ظرفیت ترانس، نوع اتصال و ابعاد قابل طراحی مطابق نیاز مشتری است.
